Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Features

1.Strong welded square steel tube structure as a whole with  vibration temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

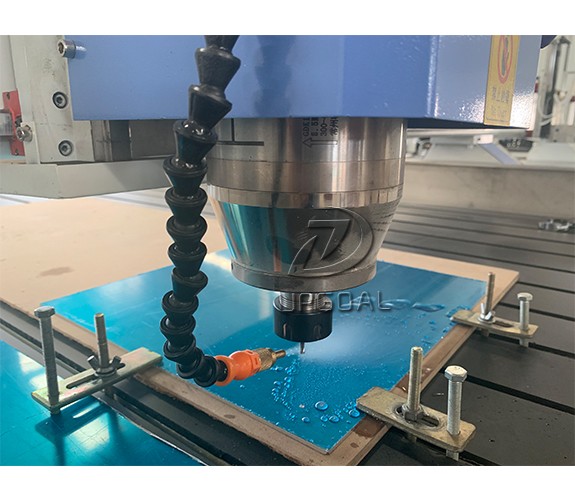

2. Large power 5.5kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

3. Strong aluminum alloy T slot working table

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. China famous 86BYGH450B stepper motor and stepper driver 860 for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

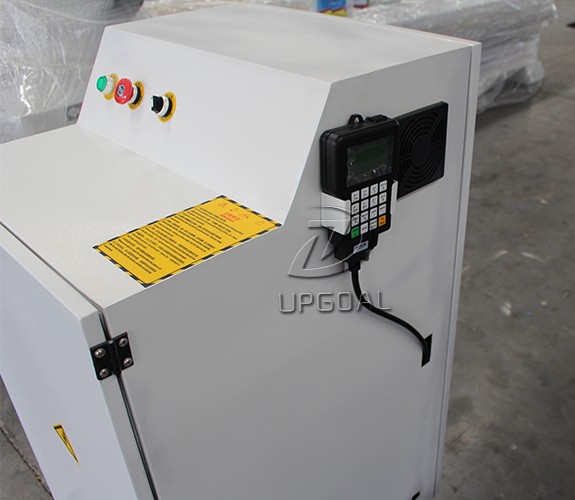

7. RichAuto DSP A11E offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

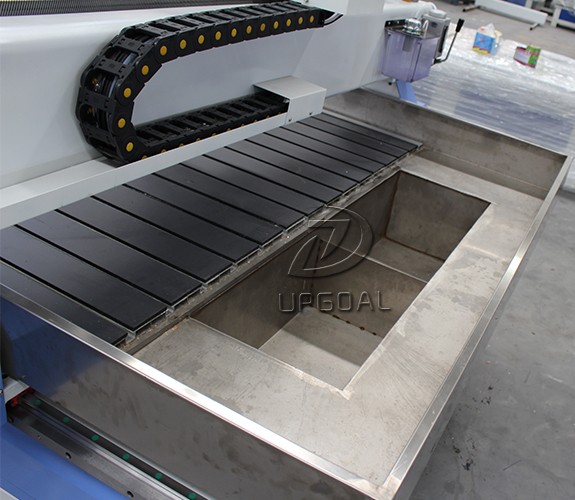

8. Stainless steel water slot cooling system with water mist cooling, ensuring the cooling for the metal & hard materials.

9.Semi-auto lubrication system more convenient for maintenance.

10 .Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Dust collector, sucking the dust, saw dust, milling dust, keeping the machine clearning.

12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
